Wakeboarding Winches
At Wake Winch Ltd we design and build petrol engined wakeboarding winches. These are the most heavy duty on the planet and we produce several models from 7 hp up to 16hp
Wakeboarding Winches
#35 gokart chain master link#35 type chain MASTER LINK. #35 chain is often used on older gokarts and is also widely used with pattern torque converters as they come with #35 type drive sprockets. The master link connects the 2 open ends of a chain. you cut the chain to length using a chain breaker tool, or an angle grinder (making sure that the chain is secure in a soft jawed vice. If the latter method is used you can then use a punch or screwdriver to push the pins out. This is for 1 peice of #35 master link
Wakeboarding Winches
13 HP Wakeboarding Winch13 HP Wake Winch Ltd Winch This is our pro model that we have supplied to professional wakeskate and snowboarding teams. The 13hp is the second most powerful winch we produce - it is not for the faint hearted! 13HP petrol engine - electric start with backup pull start. 260m of 3mm SK75 Dyneema winch line +80 feet of ski rope with handle Torque converter drive Bespoke colours available at extra cost- we currently have orange ready. Standard gearing is for wakeboarding and wakeskate, if you want a bespoke gear setup - snowboarders and skiiers can have faster gear ratios! If you need to go faster speak to us! Complete with removable wheels for compact tranport Removable handle Lazer cut frame, powder coated Splashguard Shown in some of the pictures without the torque converter cover on - this comes with all covers and the drivetrain is concealed. Pictures purely to show the inner mechanics. Fitted with HD anti vibration Lifan engine; Main improvements are: Crankcase and base are fully...
Wakeboarding Winches
15HP Midnight Galaxy Wake WinchSpecial Edition wake winch, the Midnight Galaxy The Midnight Galaxy 15 gets it's name from the two tone flip powder coat finish. In the light the color flips between dark blue and metallic purple, a thing of beauty. Specs; 15HP 4 stroke Lifan engine - electric start 1 inch Torque converter Lazer cut and welded frame and spool Free spooling system. Transport wheels and handle included Hand throttle Key Start Included but not pictured Splash guard SK75 dyneema line and wake handle Designed primarily for Wakeboarding and Snowboarding.
Wakeboarding Winches
16HP Beast Orange Wake WinchSpecial Edition wake winch,. Specs; 16HP 4 stroke Lifan engine - electric start 1 inch Torque converter Lazer cut and welded frame and spool Free spooling system. Transport wheels and handle included Hand throttle Key Start Included but not pictured Splash guard SK75 dyneema line and wake handle Designed primarily for Wakeboarding and Snowboarding.
Wakeboarding Winches
3 Month Payment plan for Orange Lazer Wake winchSpring Wake Winch Deal Wake Winch Ltd Orange Lazer special offer at just 1500! Pay in 3 monthly installments, As soon as the last payment is made we ship you your brand new Orange Lazer Winch. UK mainland shipping included. Custom colour powder coating is + 75 (colour of your choice) Spec of the winch Precision lazer cut frame Lazer cut spool drum with lettering 'Wake Winch Ltd' Pull start 7 HP model with torque converter drive Either 210m of 3mm dyneema or 260m of 2.5mm line PLUS 80 feet of wake rope Zinc primed then powder coated in awesome orange. Comes complete with a 1 ton webbing strap and d-shackle for tethering. Free spooling system for running out the line. Deluxe wake handle. Removable wheels Available now! Payment by bank transfer - 2.5% surcharge for paypal Any questions get in touch - 07960587482
Wakeboarding Winches
7 hp Shredstation Orange Lazer Wake Winch LtdThe all new Orange Lazer wake winch. Summer Deal - Just 1499! Also known as the Shredstation. Precision lazer cut frame Lazer cut spool drum with lettering 'Wake Winch Ltd' Pull start 7 HP Lifan engine model with torque converter drive Either 210m of 3mm dyneema or 260m of 2.5mm line PLUS 80 feet of wake rope Zinc primed then powder coated in awesome orange. Comes complete with a 1 ton webbing strap and d-shackle for tethering. Free spooling system for running out the line. Deluxe wake handle. Metal pnumatic wheels. Removable handle ABS splashguard The shredstation is great for wakeboarding, wakesating, snowboarding and other fast tow applications. We can ship anywhere, just ask for a quote. UK mainland delivery is included. Available now!
Wakeboarding Winches
9 HP Wake Winch petrolWake Winch 9HP Orange frames built and ready - Custom colours available on request. 9 HP petrol engine - pull start Torque converter Free running spool for easy line payout. Wake handle Transport wheels and handle - easily removable All complete and ready to go shred! Great for water, or snow, or other applications. 260 m of SK75 dyneema winch line, then a further 30 feet of wake rope with handle. Orange 9hp in stock and ready to go, custom colour turnaround approx 2 weeks. No assembly needed, ready to shred! Custom modifications and bespoke builds available - just ask.
Wakeboarding Winches

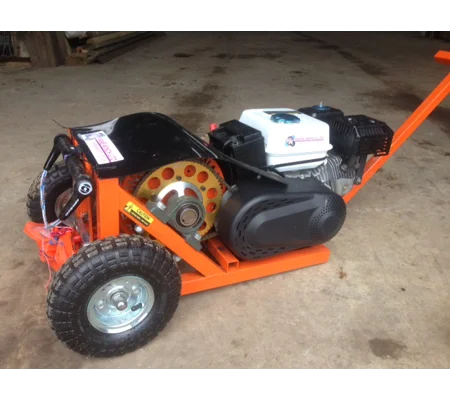

Ex Demo electric start Wake Winch 9 hpHere is our ex demo Wake Winch Ltd lazer Orange Used for demo's in Summer 2020 Excellent winch with the bonus of electric start (comes with keys) 9 hp Lifan honda clone engine Lazer cut frame powder coated in stunning orange 260m of 3mm SK75 dyneema winch line 70' wake rope Detachable wheels and handle Great for water or snowboarding Perfect speeds up to approx 24mph See our videos for performance. Massive saving on a new electric start winch! All serviced and ready to use. Collection preferred but we can send on a pallet to UK mainland for 50 All enquiries 07960587482 updated pictures to follow or on request
Wakeboarding Winches

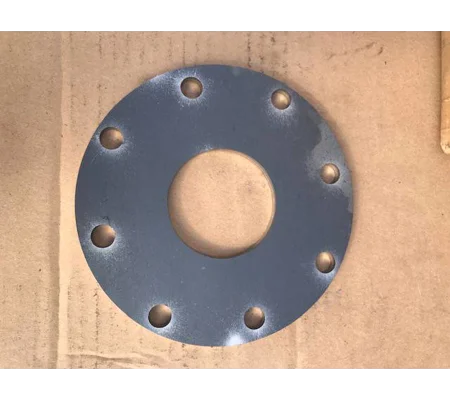

Hub wheel spacer adapter plate honda trxThese are 5mm steel plates that can be used to make hubs for go karts and mini bikes. They also can be used to adapt 2 different sizes of pcd, they can also serve as 5mm spacers. We use 50.8mm OD tube and mount bearings inside to create a hub. Just square it up and weld it on. Multi use and will save you heaps of time on your project. One disc has 2 useable pcd's, they are as follows OD 130mm ID 50.9mm thickness 5mm Disc 1 PCD 101.6mm and 110mm Disc 2 PCD 110mm and 115 mm
Wakeboarding Winches

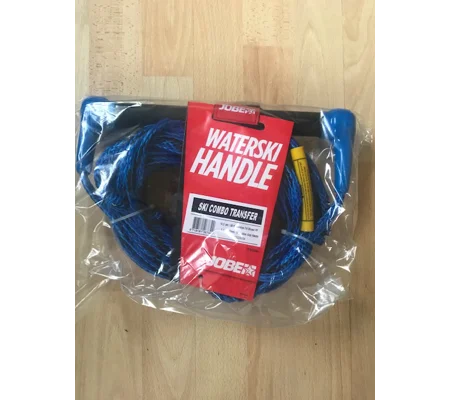

Jobe Wake and Waterski Rope with HandleJobe Transfer Waterski or Wakeboarding rope. We use these on our wake winches. The handle is comfortable and sturdy. 12 inch handle 28mm thick round grip Rubber handle grip 12 strand main line 60' main line. Green or blue available
Wakeboarding Winches

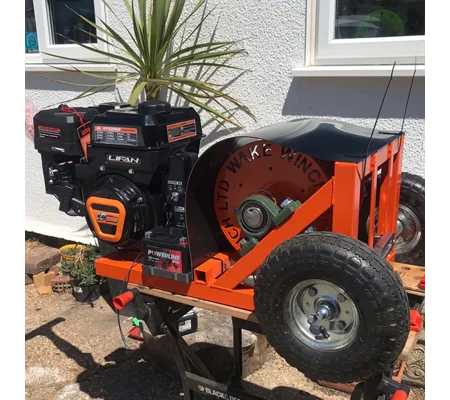

Orange 7.5hp Electric Start Wake WinchThe all new Electric Start Orange Lazer wake winch. Precision lazer cut frame Electric start version with 2 keys includes battery. Lazer cut spool drum with lettering 'Wake Winch Ltd' Pull start 7.5 HP model with torque converter drive Either 210m of 3mm dyneema or 260m of 2.5mm line PLUS 80 feet of wake rope Zinc primed then powder coated in awesome orange. Comes complete with a 1 ton webbing strap and d-shackle for tethering. Free spooling system for running out the line. Deluxe wake handle. ABS splash guard Easily removable wheels and handle for compact transportation, it easily fits in the boot of your car. No assembly needed, it is ready to shred! UK mainland delivery 60 Europe and worldwide delivery - please contact us for a quote. Available now!
Wakeboarding Winches

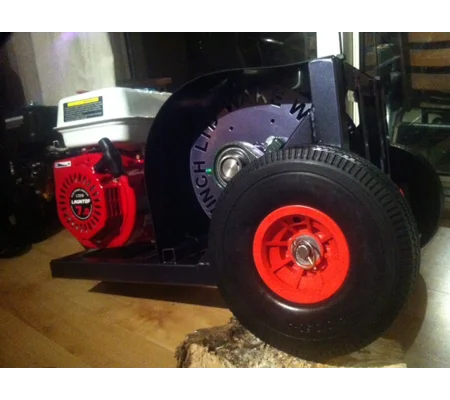

Petrol Wakeboarding Winch - Custom ColoursShowcasing some of our custom colours available - we can get your winch frame custom owder coated in almost any colour. One of the favourites was this stunning Wakeboarding Winch - The TVR This awesome looking wake winch is also a punchy performer! Finished in TVR black the colour changes as you move around it, from black to green and purple. Specifications; 7HP petrol engine TAV 2 style torque converter #35 chain and sprocket Splashguard Free spooling drum (no resistance when pulling out line) Hawse fairlead 210 m of 3mm SK75 dyneema plus 75 wake rope and deluxe handle The 71 tooth sprocket produces around 0-23 mph Plenty of grunt for deep water starts For use on water or snow, although we recommend dying the line for snow so it is more visible. Get in touch with your winch build requests!
Wakeboarding Winches

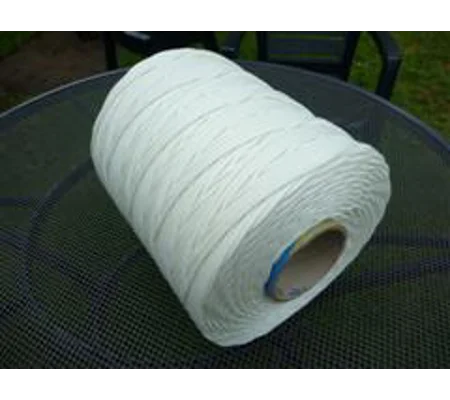

SK75 Dyneema Winch LineWakeboarding Winch Line This is SK75 Dyneema winch line sold by the kilogram Minimum drag Minimum stretch Maximum strength the line spools into on a relatively small drum for the length and strength Maximum fun 1kg of 2.5mm has a braking strain of 740 kg and is approx 260 meters 1 kg of 3mm has a braking strain of 1050 kg and is approx 210 meters SK75 dyneema is used for a multitude of uses from off road winch line to kitesurfing lines. Paragliders have even used sk75 on winches to get a launch. What you use it for is up to you, it's super strong and has very little stretch. Here is a video of it in use;
Wakeboarding Winches

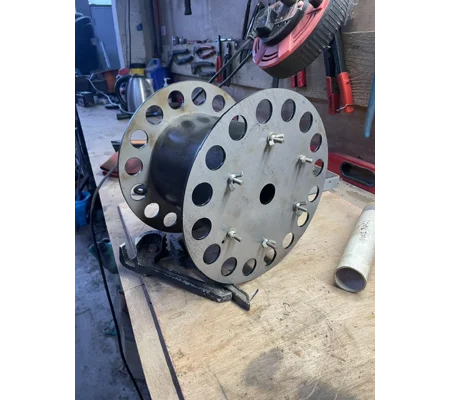

Spool Reel For 30mm Shaft Wake WinchNow with lazer cut 'wake winch ltd' on the sidewalls Steel spool reel primarily designed for use on a Wakeboarding winch. These ca be used for other applications like boat winch etc with a bit of fabrication and imagination. Standard option : Laser cut Side walls with 30mm locking collars welded to the outer You will need to drill some holes on your 30mm shaft to lock the grub screws in to. Collars can be supplied loose for you to weld on. Quick Release option: Allows 'free runout' - resistance free pulling out of the line. This makes pulling the line out super easy. Without this pulling the line out with a torque conveter is difficult. Standard Specs; 7inch internal diameter (width of spool from side plate to side plate) 6 inch diameter spool (the tubular bit) 250mm side wall diameter. We have 600ft (180m) of 3mm line on our demo model, it could easily take double that. Designed to fit on a 30mm shaft Choose from plain steel or zinc primered and powder coated other uses include met...
Wakeboarding Winches

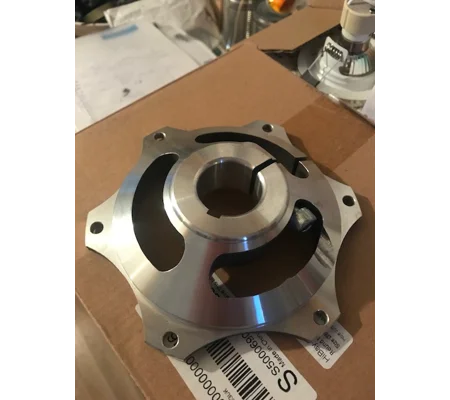

Sprocket Carrier for Wakeboarding winch or Go kartSprocket Carrier to fit on to a 30mm shaft It has a keyway and 1 cap head locking bolt. Many uses but we use these on our wakeboarding winches, they can also be used for on and off road go-karts and buggies. Your sprocket should have a 4.5inch internal diameter (hole) and have 6 holes for fixing to the carrier The carrier has a keyway.
Wakeboarding Winches

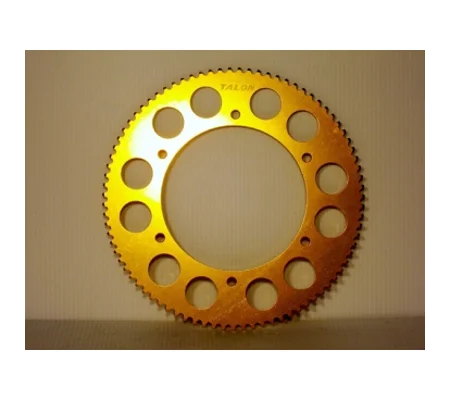

Talon - Good Gear ASA 35 kart SprocketTalon - Good Gear ASA 35 sprocket Matches our torque converters and chain type 35, also called #35 or ASA 35 Choice of sizes, we usually go 6:1 from drive pinion to driven sprocket, but that is based on the circumference of our spool drum. These are getting harder to find in the UK but we have good stock. Give us a shout if you need anything that is not listed on the website. You can use these on go karts, older and historical karts often used to run on type 35 sprockets and chain. We use these on our wakeboarding winches as the sprockets are light weight, and the torque converters we use are supplied with type 35 12t pinions. Talon Sprockets and wake winch parts from Wake Winch Ltd. We have brand new stock of 71 and 72 t #35 sprockets just in. We have got these produced especially for us and they are 'Good Gear' - our own UK brand. 71 and 72t will be 'Good Gear' branded.
Wakeboarding Winches

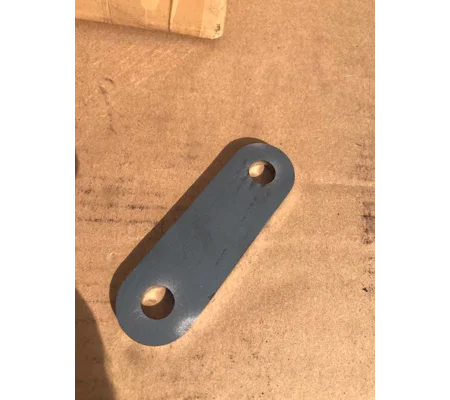

Universal Engine mount Weld on tabsThese super versatile weld on engine mount tabs will save you a load of time and effort. They can be used for suspension mounts, seat mounts, exhaust mounting points basically anything and everything where you need something attached. They are all 4mm steel and come with 8mm, 10mm, 12mm and 16mm holes (see choices). Cut them down with an angle grinder or hacksaw to get the desired shape. Mild steel so can be easily welded and then painted. Weld to box section, tube or flat bar. Top tips; Bolt on to engine or component to assess position cut the mount to shape weld to chassis or frame 8mm L 80mm x w 20mm 10mm L 100mm x W 25mm 12mm L 100mm x W 30mm 16mm L 100mm x W35mm
Wakeboarding Winches

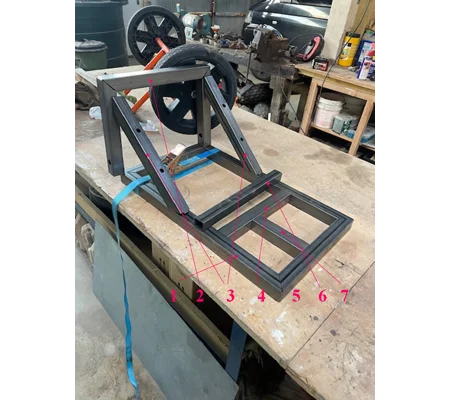

Wake winch frame kitFlat pack D.I.Y. winch frame kit. For the first time ever we are now offering a flat pack wake winch frame kit. The kit is lazer cut mild steel and is ready for you to weld up. The kit contains; The rectangular base The front bridge section 2 x 45 degree pillow block mounts/ braces 1 x centre brace which the engine mount plate also welds on to. 2 x fairlead mount bars. Splashguard box section. See transport handle as optional extra. There may be some superficial rust that can be removed with sandpaper, flapwheel or scotchbrite. We always get our frames shot blasted and powder coated anyway. Spool/ drum assemblies sold seperately - this is just the frame.
Wakeboarding Winches

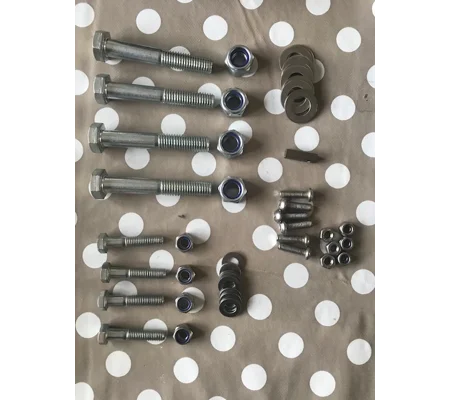

Wake Winch handy Bolt PackHandy Bolt pack to help you build your Wake Winch Pack contains; 4 pillow block bolts 8 washers for pillow block bearing bolts 4 nylock nuts for above 6 cap head bolts for the sprocket carrier 6 nylock nuts for above A piece of key steel for the shaft 4 engine mount bolts for 7hp and below /or 9hp and above Wake winch Ltd, your one stop shop for Wakeboarding winches and parts.
Wakeboarding Winches

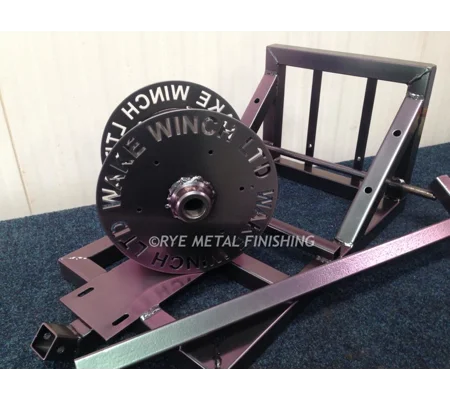

Wakeboarding winch FrameWe build our own winch frames. They are ready to bolt on a Honda or honda copy engine. The frame has holes for stub axles. These frames are lazer cut for accuracy and welded in house. It comes with removable handle. We can also supply the engine mount plate loose if bare metal. Things you will need to complete (not included); Engine Torque converter or centrifugal clutch chain sprocket sprocket carrier dyneema winch line Spool reel assembly Main shaft Bearings Bolts and fixings Wheels fairlead Fixing method - chain, strap of similar You can save yourself the effort and buy one of our ready made units! We sell most of these so check out our winch products Frame is sold bare metal as standard or zinc primered and powder coated as an option. Standard powder coat colour is our lazer orange, but we can powder coat pretty much any colour by request. All made by Wake Winch Ltd in the UK Wake winches are popular for water sports but are also being used increasingly for snow boarding and ski...
Wakeboarding Winches

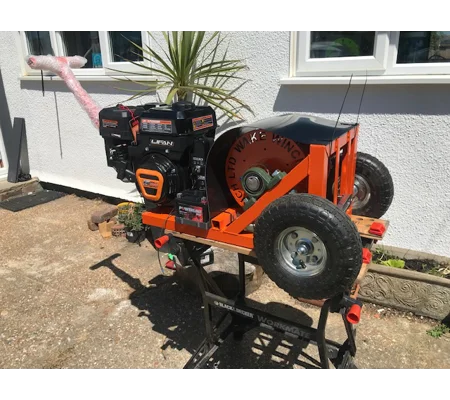

Wakeboarding Winch Shredstation PlusIntroducing the 7.5hp Shredstation PLUS This is the more refined, beefier version of the popular shredstation. The shredstation is a poplular winch for sure, but this one gets all the party invites and gets all the dates, drives a cool car and dresses like a boss. Vital Statistics; 7.5 hp Lifan 230 QE electric start engine in orange and black Powder coated in bright orange that pops 1 kg of winchline (200-230m) or double up for an extra 130 Torque converter Splash guard Jobe wake handle and rope Lazer cut frame Transport wheels and handle Tether strop and shackle Ready to shred, any time, any place Add a board and your friends, party all day Advantages over a wake boat Cheaper Cheaper to run Easier to store Easier to transport Works on shallower water Uses WAY less fuel You can use it on snow, and land It fits in your boot (trunk) Other uses may include; Snowboarding Wakeskate Uphill sledge, ski etc Tow in applications Order now - we have units ready to shreddie UK mainland shipping...
Wakeboarding Winches

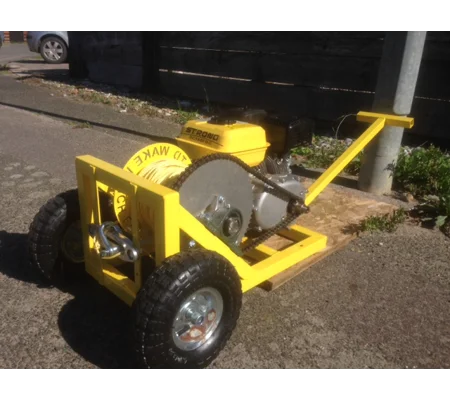

Winch - The Slow towWe were thinking that our frames are so over engineered that we could use our winches for other applictions other than leisure. So we have come up with this useful winch. The SlowTow has a maximum speed of under 4 mph. Some uses for this winch; Forrestry- towing logs, tree stumps etc Mud rescue - pulling things that are stuck in mud general towing on flat ground - moving skid units etc Slow incredibly powerful pulling power. Long winch line, over 200m Low ground pressure and small for limited access The winch comes with ; Transport kit (removable wheels and handle) 6.5 hp petrol engine 2:1 wet clutch reduction box Dyneema winch line and shackle 2T lifting strap for tethering winch Winch can be bolted down, there are holes pre drilled in the frame Throttle on the engine Pull start with kill switch True free spooling system - no effort whatsoever to take the line out You can also use a pulley on the pulled end for half spee...
Wakeboarding Winches

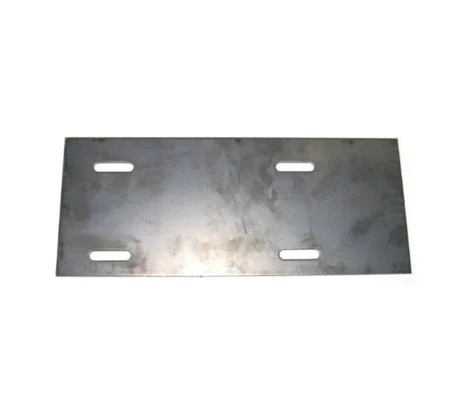

Winch Minibike Gokart Parts Engine mount plate for honda gx160Weld on mounting plate for a Honda GX 160 and GX200, Lifan or clone including Lifan LF200 and LF210 or Briggs and Stratton equivalent 7hp petrol engines. When constructing self build projects the engine mounting can become an issue, so we have developed these engine mounting plates that can be used for go karts, wakeboarding winches, tillers, mini bikes, basically anything that you need to mount a honda engine on to. These plates are slotted to allow adjustment of belt or chain tension for your applications Plate is 4mm thick steel, much more subtantial than others on the market Bolt pattern on these is 164mm between centres Bolt holes are M8 (e.g. 13mm hex head). Any other questions including bulk order just shout.
Wakeboarding Winches

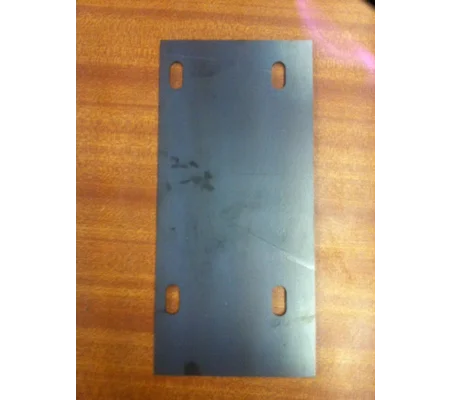

Winch parts - Engine mount plate honda gx 270 weld onEngine mount plate for Honda GX200, GX270 GX390 or equivalent clone Also fits bolt pattern on Lifan LF270, LF390 and LF 420 May well fit briggs and stratton too Bolt pattern 195x90mm to fit 10mm bolts Mounting plate is slotted for belt or chain adjustment plate is 4mm thick steel, very strong and ready to weld on to your frame. Great for self build go karts and other projects. So get inventing - get in touch if you need bulk supply. We build and supply wakeboarding winches, let us know if you need torque converters etc
